Specifications
FloodSaver® Slide-N-Fold® Pans
Slide-N-Fold® is an innovative and flexible product designed to protect homes, apartments and condominiums by minimizing the risk of flooding by appliances that are located under counters or in difficult-to-reach locations. Many people desire the “cabinet look.” Delivered flat, the unit is folded to form a water-tight pan using eight simple screw-rivets. Prior to installation the sides and back of the unit are assembled, leaving the front side “open.” After the unit is positioned and a drain is installed, the appliance is slid onto the unit. Then the front of the unit is folded and “riveted” into place, forming an effective protection against appliance leaks and floods. The screw-rivets can be removed later as needed for appliance maintenance.
Suggested Specifications
Water containment system shall be FloodSaver® Slide-N-Fold® Pan or equivalent. 1-piece system to consist of formed high-density polypropylene. Unit shall form an approximately 2" deep containment pan and shall accommodate a standard shower-type or sink-type drain.
Please Measure Carefully!
Measure your appliance 3" from the floor for the inside dimension. Measure the room space available for outside dimension to determine the correct pan size.
When sliding the appliance into the Slide-N-Fold® pan make sure the front side is flat against the floor and the corners are not caught in anyway by the appliance. We recommend placing of a piece of cardboard in the area which will protect the front side and can be removed after the appliance is in place.

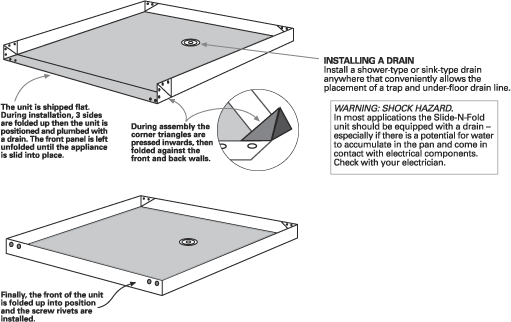

Installing a Drain
Install a shower-type or sink-type drain anywhere that conveniently allows the placement of a trap and under-floor drain line.
Warning: Shock Hazard
In most applications the Slide-N-Fold® unit should be equipped with a drain – especially if there is a potential for water to accumulate in the pan and come in contact with electrical components. Check with your electrician.
The unit is shipped flat. During installation, 3 sides are folded up by pressing the triangles inwards and then folded against the front and back walls. The unit isthen positioned and plumbed with a drain. The front panel is left unfolded until the appliance is slid into place.
Finally, the front of the unit is folded into position and the screw rivets are installed.
APFP2424
Nominal Dimensions:
Width: 24" (side to side)Depth: 24" (front to back)
Surge Capacity: 5.0 gallons
APFP2426
Nominal Dimensions:
Width: 24" (side to side)Depth: 26" (front to back)
Surge Capacity: 5.0 gallons
APFP2729
Nominal Dimensions:
Width: 27" (side to side)Depth: 29" (front to back)
Surge Capacity: 7.6 gallons
APFP2732
Nominal Dimensions:
Width: 27" (side to side)Depth: 32" (front to back)
Surge Capacity: 8.4 gallons
APFP3021
Nominal Dimensions:
Width: 30" (side to side)Depth: 21" (front to back)
Surge Capacity: 7.5 gallons
PLEASE MEASURE CARFULLY!
Measure your appliance 3" from the floor for the inside dimension. Measure the room space available for outside dimension to determine the correct pan size.
Warranty Information and How to Order
Made in the USA
